Hypothesized Facial Configurations

Author

Jeffrey Girard

Published

July 24, 2026

Approach

  • Unit: each coded FACS event is one momentary configuration of one face. Recordings contain multiple faces, coded separately by identity.
  • Exposure: duration-weighted person-time. Overlapping events are merged within a face (a face cannot double-count itself), then summed across faces (two co-visible faces contribute independently).
  • Denominators: valid full-face time (which includes time a face was visible but no AU was coded) and valid session time.
  • Assessability: hypothesized configurations are reduced to the project scheme. Those retaining no in-scheme AUs are unassessable and cannot occur by construction; those losing some AUs are partially assessable.
  • Phases are never pooled. Phase I (waves 6, 9) is the main analysis. Phase II (waves 12, 15) is reported in the supplement.
library(tidyverse)
library(furrr)
library(gt)
library(facs)
library(easystats)
library(patchwork)

Data

info <-
  left_join(
    read_rds("/mnt/datasets/SEEDLingS/2_PROCESSED/session_info.rds"),
    read_rds("facs_times.rds"),
    by = c("subject", "wave")
  ) |>
  filter(!(subject == 18 & wave == 6)) |>
  mutate(
    valid_session  = session_duration - vis - hat,
    valid_fullface = ffa - vis - hat,
    phase = if_else(wave %in% c(6, 9), "I", "II")
  )

facs <-
  read_rds("/mnt/datasets/SEEDLingS/2_PROCESSED/facs_coding.rds") |>
  left_join(info, by = c("subject", "wave")) |>
  filter(!(subject == 18 & wave == 6)) |>
  drop_na(facs_identity, facs_duration) |>
  filter(facs_duration > 0) |>
  # identity belongs in the event key: facs_id may restart per face
  mutate(event_id = str_c(subject, wave, facs_identity, facs_id, sep = "_"))

# event_id must uniquely identify an event
stopifnot(n_distinct(facs$event_id) == nrow(facs))

project_scheme <- scheme(list(
  occurrence = c(1:2, 4:39),
  intensity  = c(1:2, 4:39),
  asymmetry  = c(1:2, 4:39)
))

protos <-
  prototypes |>
  filter(is.na(emotion_type) | emotion_type != "compound") |>
  mutate(
    emotion = case_when(
      emotion %in% c("anger", "angry")                      ~ "anger",
      emotion %in% c("confused", "confusion")               ~ "confusion",
      emotion %in% c("desire", "desire food", "desire sex") ~ "desire",
      emotion %in% c("disgust", "disgusted")                ~ "disgust",
      emotion %in% c("fear", "fearful")                     ~ "fear",
      emotion %in% c("happy", "happiness", "joy")           ~ "happiness",
      emotion %in% c("sad", "sadness")                      ~ "sadness",
      emotion %in% c("surprise", "surprised")               ~ "surprise",
      .default = emotion
    )
  )

phase_totals <-
  info |>
  summarize(
    .by = phase,
    valid_session  = sum(valid_session,  na.rm = TRUE),
    valid_fullface = sum(valid_fullface, na.rm = TRUE),
    n_infants      = n_distinct(subject)
  ) |>
  arrange(phase)

phase_totals

Assessability of the hypothesized set

# Canonical AU-set key: sorted, de-duplicated integer AUs joined by "+".
# Used for ALL matching, so joins compare plain strings rather than fcs_cdng
# objects (which need not compare equal even for identical AU sets).
canon_code <- function(x) {
  map_chr(x, \(code) {
    aus <- sort(unique(pull_numcodes(code)))
    if (length(aus)) paste(aus, collapse = "+") else NA_character_
  })
}

proto_status <-
  protos |>
  mutate(
    name     = paste(source, emotion, config_num, sep = "_"),
    full_aus = map_int(code, \(x) length(pull_numcodes(x))),
    kept_aus = map_int(code, \(x) length(intersect(pull_numcodes(x), project_scheme$occurrence))),
    status   = case_when(
      kept_aus == 0        ~ "unassessable",
      kept_aus <  full_aus ~ "partial",
      .default             = "complete"
    ),
    reduced  = map_chr(code, \(x) {
      keep <- sort(intersect(pull_numcodes(x), project_scheme$occurrence))
      if (length(keep)) paste(keep, collapse = "+") else NA_character_
    })
  )

proto_status |>
  summarize(.by = status, configs = n(), emotions = n_distinct(emotion)) |>
  mutate(pct = configs / sum(configs)) |>
  arrange(factor(status, levels = c("complete", "partial", "unassessable"))) |>
  gt() |>
  tab_header(title = "Assessability of hypothesized configurations") |>
  fmt_percent(columns = pct, decimals = 1) |>
  cols_label(status = "Status", configs = "Configs", emotions = "Emotions",
             pct = "% of configs")
Assessability of hypothesized configurations
Status Configs Emotions % of configs
complete 223 12 81.4%
partial 46 13 16.8%
unassessable 5 4 1.8%
emotions_lost <-
  proto_status |>
  summarize(.by = emotion, all_unassessable = all(status == "unassessable")) |>
  filter(all_unassessable) |>
  pull(emotion)

cat("Emotions with no assessable configuration:",
    if (length(emotions_lost)) paste(emotions_lost, collapse = ", ") else "none", "\n")
Emotions with no assessable configuration: boredom
# Assessable hypothesized configurations, keyed by canonical reduced AU set.
# `reduced` is already a canonical string (sorted, "+"-joined), so it is the key.
protos_assessable <-
  proto_status |>
  filter(status != "unassessable") |>
  distinct(emotion, reduced, status) |>
  rename(occ_key = reduced)

Observed configurations

plan("multisession", workers = 9)

occ_events <-
  facs |>
  mutate(
    occ_key = future_map_chr(facs_code, \(x) {
      codes <- tidy(coding(x))[[1]]$occurrence
      keep  <- sort(codes[codes %in% project_scheme$occurrence])
      if (length(keep)) paste(keep, collapse = "+") else NA_character_
    })
  ) |>
  drop_na(occ_key)

occ_events |> count(phase, name = "events")
# Confirm the string join recovers matches. If this is 0, no assessable
# configuration ever occurred; otherwise it is the number of matched event rows.
n_matched <-
  occ_events |>
  semi_join(protos_assessable, by = "occ_key") |>
  nrow()

cat("Event rows matching any assessable hypothesized configuration:", n_matched, "\n")
Event rows matching any assessable hypothesized configuration: 3392

Exposure (person-time)

# Merge overlapping events WITHIN a face, then sum ACROSS faces.
merge_within_face <- function(df, keys) {
  df |>
    arrange(across(all_of(keys)), facs_onset) |>
    mutate(
      .by = all_of(keys),
      max_off  = cummax(lag(facs_offset, default = -Inf)),
      new_blk  = facs_onset > max_off,
      block_id = cumsum(new_blk)
    ) |>
    summarize(
      .by = c(all_of(keys), block_id),
      onset  = min(facs_onset),
      offset = max(facs_offset)
    ) |>
    mutate(block_dur = offset - onset) |>
    summarize(.by = all_of(keys), duration = sum(block_dur))
}

emotion_events <-
  occ_events |>
  inner_join(
    protos_assessable |> select(emotion, occ_key),
    by = "occ_key",
    relationship = "many-to-many"
  ) |>
  # an event may match several variants of one emotion: count it once per emotion
  distinct(subject, wave, phase, facs_identity, emotion, event_id,
           facs_onset, facs_offset, facs_duration)

# subject x wave x emotion person-time (merged within face, summed across faces)
emotion_subject <-
  emotion_events |>
  merge_within_face(keys = c("subject", "wave", "phase", "facs_identity", "emotion")) |>
  summarize(.by = c(subject, wave, phase, emotion), duration = sum(duration))

# complete the grid so non-occurrences are explicit zeros
emotion_long <-
  crossing(
    info |> select(subject, wave, phase, valid_session, valid_fullface),
    emotion = sort(unique(protos_assessable$emotion))
  ) |>
  left_join(emotion_subject, by = join_by(subject, wave, phase, emotion)) |>
  replace_na(list(duration = 0)) |>
  mutate(
    fullface_pct = duration / valid_fullface,
    session_pct  = duration / valid_session
  )

# Collapse subject-waves to subject-within-phase BEFORE counting infants, so a
# subject exposed in both waves is not counted twice (this was inflating the
# infant counts above the sample size).
emotion_subject_phase <-
  emotion_long |>
  summarize(.by = c(phase, subject, emotion), duration = sum(duration))

emotion_phase <-
  emotion_subject_phase |>
  summarize(
    .by = c(phase, emotion),
    seconds        = sum(duration),
    infants_any    = n_distinct(subject[duration > 0]),  # distinct infants
    max_infant_sec = max(duration)                       # largest infant (summed over waves)
  ) |>
  left_join(phase_totals, by = "phase") |>
  mutate(
    fullface_pct = seconds / valid_fullface,
    session_pct  = seconds / valid_session,
    top_infant_share = if_else(seconds > 0, max_infant_sec / seconds, NA_real_)
  )

MAIN TABLE (Phase I): exposure to hypothesized configurations

n_inf_i <- phase_totals$n_infants[phase_totals$phase == "I"]

emotion_phase |>
  filter(phase == "I") |>
  arrange(desc(fullface_pct)) |>
  select(emotion, seconds, fullface_pct, session_pct, infants_any, top_infant_share) |>
  mutate(emotion = str_to_title(emotion)) |>
  gt() |>
  tab_header(
    title = "Phase I: exposure to hypothesized facial configurations",
    subtitle = "Person-time; co-visible faces contribute independently"
  ) |>
  fmt_number(columns = seconds, decimals = 1) |>
  fmt_percent(columns = c(fullface_pct, session_pct, top_infant_share), decimals = 2) |>
  sub_missing(missing_text = "\u2014") |>
  cols_label(
    emotion = "Emotion",
    seconds = "Seconds",
    fullface_pct = "% Full-face time",
    session_pct = "% Session time",
    infants_any = paste0("# Infants (of ", n_inf_i, ")"),
    top_infant_share = "Largest infant's share"
  ) |>
  tab_source_note(md(
    "Emotions with no assessable hypothesized configuration are omitted. A single observed configuration can match several emotions, so rows are not additive; see the union total in text. *Largest infant's share* is the proportion of that emotion's total exposure contributed by the single most-exposed infant."
  ))
Phase I: exposure to hypothesized facial configurations
Person-time; co-visible faces contribute independently
Emotion Seconds % Full-face time % Session time # Infants (of 44) Largest infant's share
Happiness 1,146.5 12.07% 0.38% 44 10.28%
Contentment 861.2 9.06% 0.28% 44 9.35%
Sadness 306.4 3.23% 0.10% 42 14.63%
Surprise 145.3 1.53% 0.05% 41 19.85%
Fear 76.0 0.80% 0.03% 30 23.63%
Disgust 39.7 0.42% 0.01% 28 14.82%
Desire 22.5 0.24% 0.01% 26 31.87%
Anger 7.1 0.07% 0.00% 9 32.70%
Confusion 7.1 0.07% 0.00% 9 32.70%
Sympathy 3.6 0.04% 0.00% 7 31.80%
Relief 1.4 0.01% 0.00% 3 56.03%
Contempt 0.8 0.01% 0.00% 2 78.36%
Amusement 0.0 0.00% 0.00% 0 —
Awe 0.0 0.00% 0.00% 0 —
Coyness 0.0 0.00% 0.00% 0 —
Embarrassment 0.0 0.00% 0.00% 0 —
Interest 0.0 0.00% 0.00% 0 —
Pain 0.0 0.00% 0.00% 0 —
Pride 0.0 0.00% 0.00% 0 —
Shame 0.0 0.00% 0.00% 0 —
Triumph 0.0 0.00% 0.00% 0 —
Emotions with no assessable hypothesized configuration are omitted. A single observed configuration can match several emotions, so rows are not additive; see the union total in text. Largest infant’s share is the proportion of that emotion’s total exposure contributed by the single most-exposed infant.

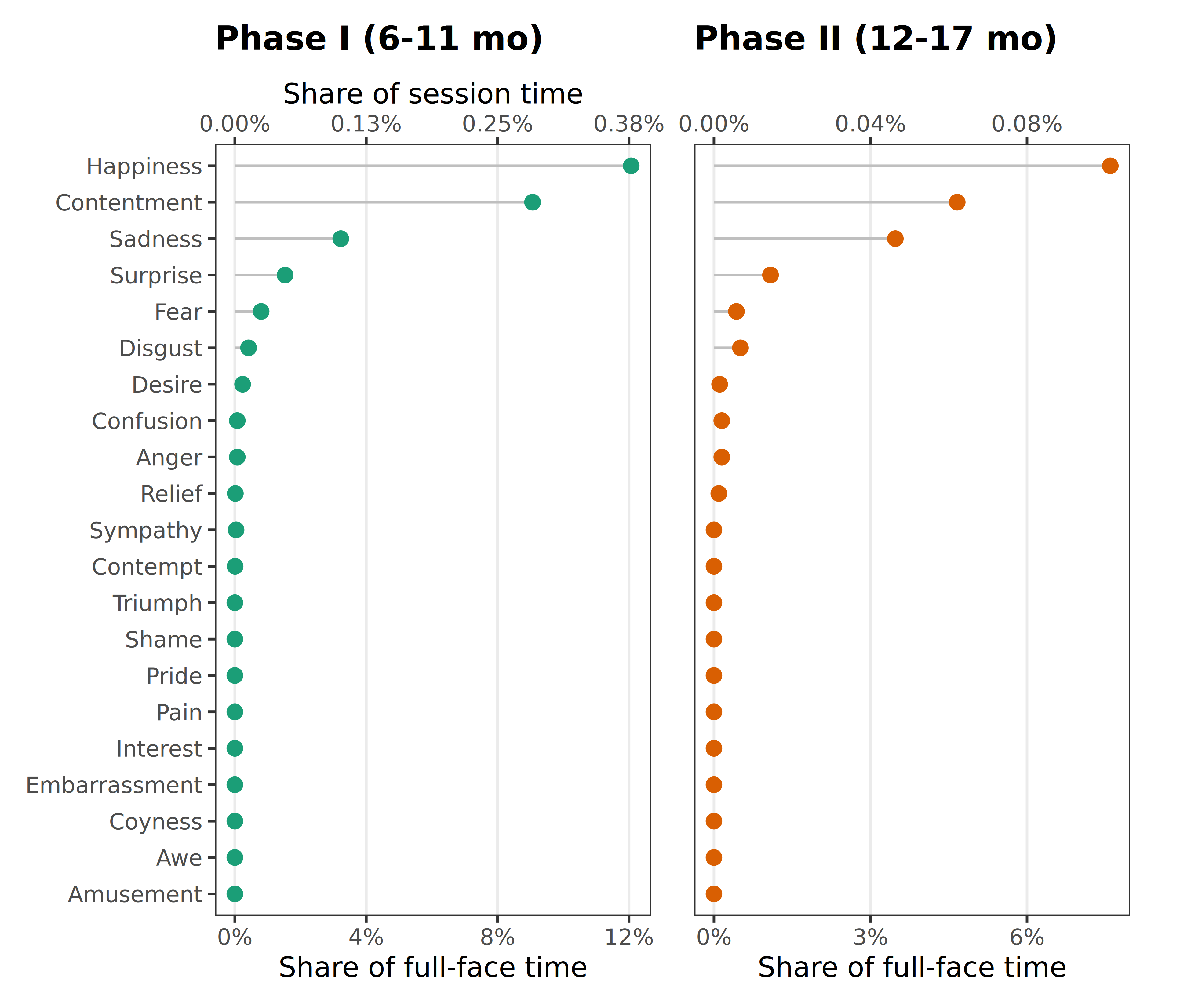

FIGURE: exposure by emotion and phase

# Emotion order fixed across panels, by max exposure across phases.
emotion_order <-
  emotion_phase |>
  summarize(.by = emotion, m = max(fullface_pct)) |>
  arrange(m) |>
  pull(emotion) |>
  str_to_title()

# One panel per phase, each with its own exact full-face -> session ratio and
# its own ~4 round breaks.
hep_panel <- function(ph, color, show_y) {
  d   <- emotion_phase |> filter(phase == ph) |>
    mutate(emotion = factor(str_to_title(emotion), levels = emotion_order))
  tot <- phase_totals |> filter(phase == ph)
  ratio <- tot$valid_fullface / tot$valid_session

  top  <- max(d$fullface_pct, na.rm = TRUE)
  step <- signif(top / 3, 1)
  brk  <- seq(0, ceiling(top / step) * step, by = step)

  ggplot(d, aes(x = fullface_pct, y = emotion)) +
    geom_segment(aes(xend = 0, yend = emotion), color = "grey75", linewidth = 0.5) +
    geom_point(size = 2.4, color = color) +
    scale_x_continuous(
      name   = "Share of full-face time",
      breaks = brk,
      labels = scales::percent,
      sec.axis = sec_axis(
        transform = ~ .x * ratio,
        name   = if (ph == "I") "Share of session time" else NULL,
        breaks = brk * ratio,
        labels = scales::label_percent(accuracy = 0.01)
      )
    ) +
    labs(y = NULL, title = c("I" = "Phase I (6-11 mo)",
                             "II" = "Phase II (12-17 mo)")[[ph]]) +
    theme_bw() +
    theme(
      plot.title = element_text(face = "bold", size = 13, margin = margin(b = 8)),
      panel.grid.major.y = element_blank(),
      panel.grid.minor = element_blank(),
      axis.text.y  = if (show_y) element_text() else element_blank(),
      axis.ticks.y = if (show_y) element_line() else element_blank()
    )
}

fig_hep <-
  hep_panel("I",  "#1b9e77", show_y = TRUE) +
  hep_panel("II", "#d95f02", show_y = FALSE) +
  plot_layout(nrow = 1) &
  theme(plot.margin = margin(t = 5, r = 12, b = 5, l = 5))

fig_hep

ggsave("fig_hep.png", fig_hep, width = 6.5, height = 5.5, dpi = 300)

IN-TEXT NUMBERS (Phase I)

Summing across emotions double-counts, because one configuration can match several. The union below counts each face-second once and is the number to report as a total.

any_hep <-
  occ_events |>
  semi_join(protos_assessable, by = "occ_key") |>
  merge_within_face(keys = c("subject", "wave", "phase", "facs_identity")) |>
  summarize(.by = phase, seconds = sum(duration)) |>
  left_join(phase_totals, by = "phase") |>
  mutate(
    pct_fullface = seconds / valid_fullface,
    pct_session  = seconds / valid_session
  )

any_hep |>
  gt() |>
  tab_header(title = "Any hypothesized configuration (union across emotions)") |>
  fmt_number(columns = c(seconds, valid_fullface, valid_session), decimals = 0) |>
  fmt_percent(columns = c(pct_fullface, pct_session), decimals = 2) |>
  cols_label(phase = "Phase", seconds = "Seconds",
             valid_fullface = "Full-face sec", valid_session = "Session sec",
             pct_fullface = "% Full-face", pct_session = "% Session")
Any hypothesized configuration (union across emotions)
Phase Seconds Session sec Full-face sec n_infants % Full-face % Session
I 1,674 302,193 9,501 44 17.61% 0.55%
II 328 178,688 2,516 31 13.02% 0.18%
list(
  n_protos              = nrow(proto_status),
  n_complete            = sum(proto_status$status == "complete"),
  n_partial             = sum(proto_status$status == "partial"),
  n_unassessable        = sum(proto_status$status == "unassessable"),
  emotions_unassessable = if (length(emotions_lost)) paste(emotions_lost, collapse = ", ") else "none",
  emotions_assessed     = n_distinct(protos_assessable$emotion),
  hep_pct_fullface_I    = any_hep$pct_fullface[any_hep$phase == "I"],
  hep_pct_session_I     = any_hep$pct_session[any_hep$phase == "I"]
) |>
  enframe(name = "quantity", value = "value") |>
  mutate(value = map_chr(value, \(x) format(unlist(x), digits = 3))) |>
  print(n = Inf)
# A tibble: 8 × 2
  quantity              value
  <chr>                 <chr>
1 n_protos              274
2 n_complete            223
3 n_partial             46
4 n_unassessable        5
5 emotions_unassessable boredom
6 emotions_assessed     21
7 hep_pct_fullface_I    0.176
8 hep_pct_session_I     0.00554
ff_i   <- any_hep$pct_fullface[any_hep$phase == "I"]
ss_i   <- any_hep$pct_session[any_hep$phase == "I"]
top3   <- emotion_phase |> filter(phase == "I") |> slice_max(fullface_pct, n = 3)
n_none <- emotion_phase |> filter(phase == "I", seconds == 0) |> nrow()

cat(sprintf(
"## Key takeaways (Phase I)

1. **Hypothesized configurations are rare in infants' input.** Infants spent
   %.2f%% of full-face time (%.2f%% of session time) seeing any assessable
   hypothesized configuration.
2. **What exposure there is concentrates in a few emotions.** %s account for most
   of it; %d assessable emotions never occurred at all.
3. **Some emotions could not be assessed.** %d of %d hypothesized configurations
   contain no AU in our coding scheme%s, so their absence would describe the
   scheme rather than infants' input.
4. **Emotion counts are not additive.** Hypothesized sets overlap, so one observed
   configuration can match several emotions. Totals are unions over face-time.
",
  100 * ff_i, 100 * ss_i,
  paste(str_to_title(top3$emotion), collapse = ", "), n_none,
  sum(proto_status$status == "unassessable"), nrow(proto_status),
  if (length(emotions_lost)) paste0(", leaving ", paste(emotions_lost, collapse = " and "),
                                    " with none assessable") else ""
))

Key takeaways (Phase I)

  1. Hypothesized configurations are rare in infants’ input. Infants spent 17.61% of full-face time (0.55% of session time) seeing any assessable hypothesized configuration.
  2. What exposure there is concentrates in a few emotions. Happiness, Contentment, Sadness account for most of it; 9 assessable emotions never occurred at all.
  3. Some emotions could not be assessed. 5 of 274 hypothesized configurations contain no AU in our coding scheme, leaving boredom with none assessable, so their absence would describe the scheme rather than infants’ input.
  4. Emotion counts are not additive. Hypothesized sets overlap, so one observed configuration can match several emotions. Totals are unions over face-time.

SUPPLEMENT

S1. Phase II

n_inf_ii <- phase_totals$n_infants[phase_totals$phase == "II"]

emotion_phase |>
  filter(phase == "II") |>
  arrange(desc(fullface_pct)) |>
  select(emotion, seconds, fullface_pct, session_pct, infants_any, top_infant_share) |>
  mutate(emotion = str_to_title(emotion)) |>
  gt() |>
  tab_header(title = "Phase II: exposure to hypothesized facial configurations") |>
  fmt_number(columns = seconds, decimals = 1) |>
  fmt_percent(columns = c(fullface_pct, session_pct, top_infant_share), decimals = 2) |>
  sub_missing(missing_text = "\u2014") |>
  cols_label(
    emotion = "Emotion", seconds = "Seconds",
    fullface_pct = "% Full-face time", session_pct = "% Session time",
    infants_any = paste0("# Infants (of ", n_inf_ii, ")"),
    top_infant_share = "Largest infant's share"
  )
Phase II: exposure to hypothesized facial configurations
Emotion Seconds % Full-face time % Session time # Infants (of 31) Largest infant's share
Happiness 191.2 7.60% 0.11% 24 15.57%
Contentment 117.3 4.66% 0.07% 23 17.32%
Sadness 87.5 3.48% 0.05% 18 53.77%
Surprise 27.3 1.08% 0.02% 11 34.01%
Disgust 12.8 0.51% 0.01% 11 40.44%
Fear 10.8 0.43% 0.01% 6 36.04%
Anger 3.8 0.15% 0.00% 4 49.56%
Confusion 3.8 0.15% 0.00% 4 49.56%
Desire 2.8 0.11% 0.00% 5 51.85%
Relief 2.3 0.09% 0.00% 3 34.81%
Amusement 0.0 0.00% 0.00% 0 —
Awe 0.0 0.00% 0.00% 0 —
Contempt 0.0 0.00% 0.00% 0 —
Coyness 0.0 0.00% 0.00% 0 —
Embarrassment 0.0 0.00% 0.00% 0 —
Interest 0.0 0.00% 0.00% 0 —
Pain 0.0 0.00% 0.00% 0 —
Pride 0.0 0.00% 0.00% 0 —
Shame 0.0 0.00% 0.00% 0 —
Sympathy 0.0 0.00% 0.00% 0 —
Triumph 0.0 0.00% 0.00% 0 —

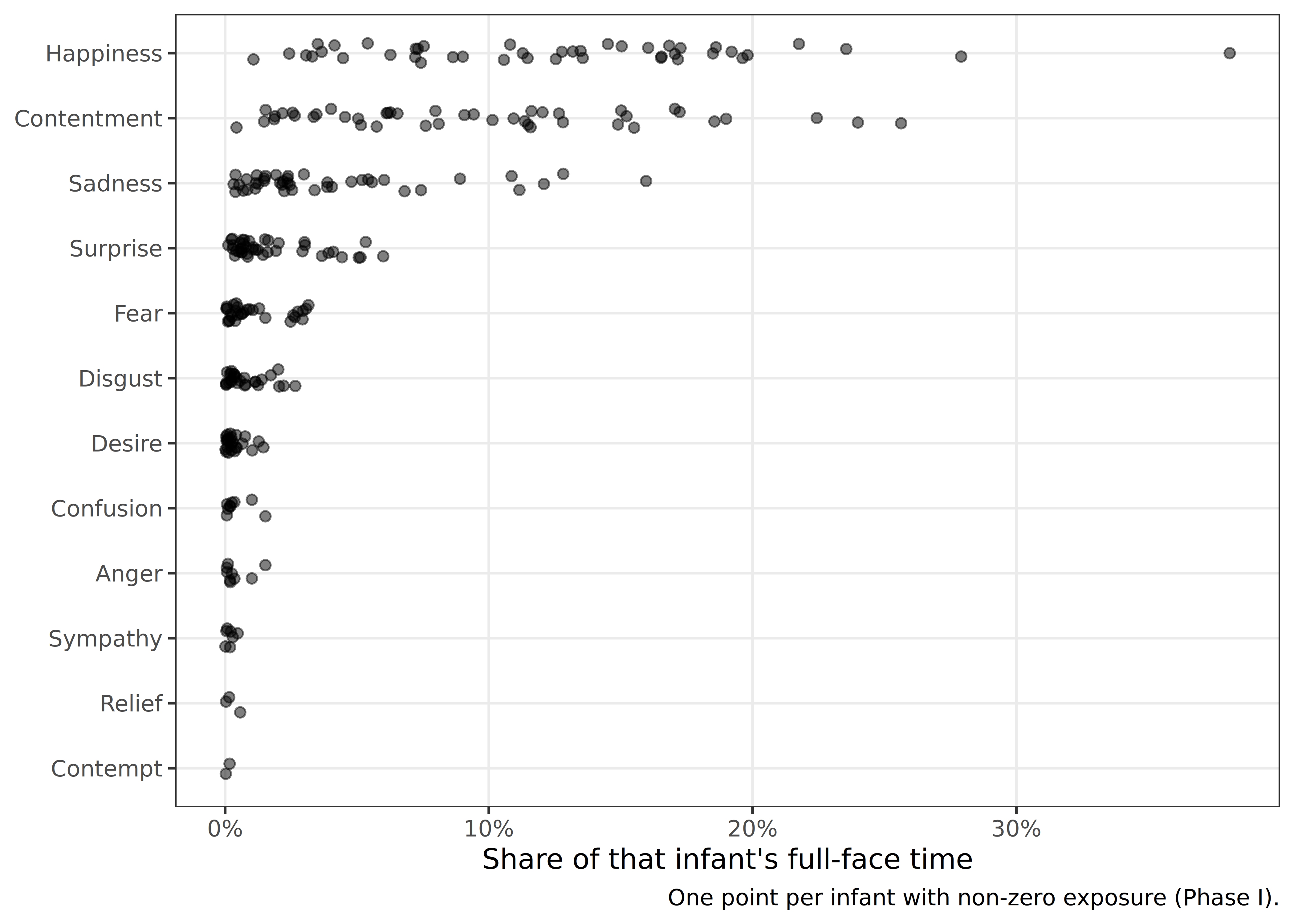

S2. Spread across infants

# One point per infant-within-phase with non-zero exposure (Phase I),
# using the subject-level collapse so an infant is a single point.
emotion_subject_phase |>
  filter(phase == "I", duration > 0) |>
  left_join(
    info |> distinct(subject, phase) |>
      left_join(
        info |> summarize(.by = c(subject, phase),
                          ff = sum(valid_fullface, na.rm = TRUE)),
        by = c("subject", "phase")
      ),
    by = c("subject", "phase")
  ) |>
  mutate(
    infant_pct = duration / ff,
    emotion = fct_reorder(str_to_title(emotion), infant_pct, .fun = median)
  ) |>
  ggplot(aes(x = infant_pct, y = emotion)) +
  geom_point(alpha = 0.5, size = 1.6,
             position = position_jitter(height = 0.15, width = 0)) +
  scale_x_continuous(labels = scales::percent) +
  labs(x = "Share of that infant's full-face time", y = NULL,
       caption = "One point per infant with non-zero exposure (Phase I).") +
  theme_bw() +
  theme(panel.grid.minor = element_blank())

S3. Files

proto_status |>
  transmute(name, emotion, code = as.character(code), full_aus, kept_aus, reduced, status) |>
  write_csv("supp_hep_S1_assessability.csv")

emotion_long |>
  arrange(phase, emotion, subject, wave) |>
  write_csv("supp_hep_S2_by_infant.csv")

occ_events |>
  inner_join(protos_assessable |> select(emotion, occ_key, status),
             by = "occ_key", relationship = "many-to-many") |>
  summarize(
    .by = c(phase, occ_key, emotion, status),
    n_events  = n_distinct(event_id),
    seconds   = sum(facs_duration),
    n_infants = n_distinct(subject)
  ) |>
  arrange(phase, desc(seconds)) |>
  write_csv("supp_hep_S3_matching_configs.csv")

write_rds(emotion_long,  "emotion_long.rds")
write_rds(emotion_phase, "emotion_phase.rds")

Notes

  • Matching is on a canonical AU-set string (occ_key), not on fcs_cdng objects. Joining coding objects can silently miss matches, since two objects with the same AUs need not compare equal. The join-check chunk reports the matched-row count so this can be verified.
  • Infant counts are computed after collapsing subject-waves to subject-within-phase, so a subject exposed in both waves of a phase is counted once. Previously they were counted per subject-wave, which pushed counts above the sample size.
  • Emotion totals are not additive (one configuration can match several emotions); the union in the in-text chunk is the honest total.
